Description

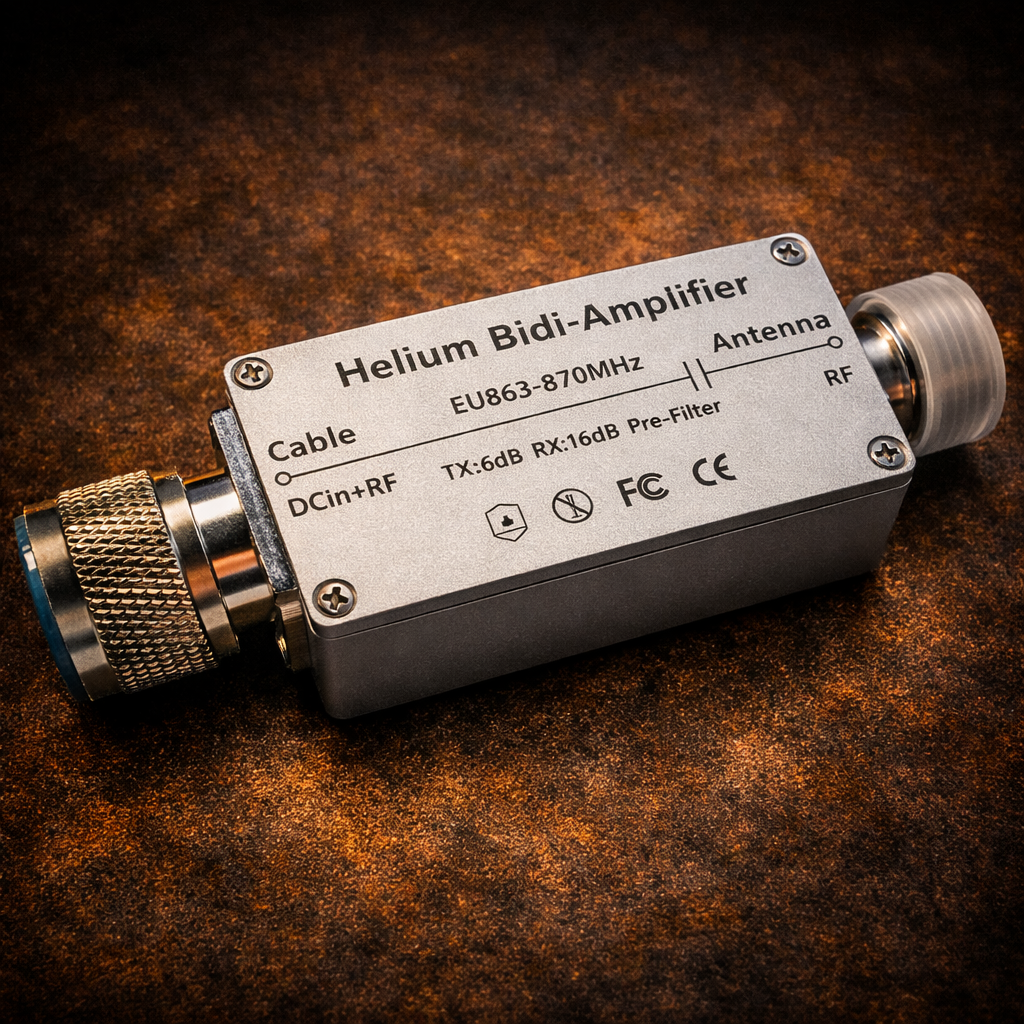

A customer reached out and asked if we could adopt our massive success with our DJI drone booster kit into a booster/amplifier for the Helium network.
At the time we had not looked into HNT minig at all but decided that it would be fun to give it a go.
Luckily we were up for the challenge and ended up developing a high quality product that really makes a difference.

Does it work?...yes it does!

This is not a resale product that can be purchased everywhere but our own creation with focus on actually increasing mining rewards by improving coverage and bringing value to the Helium network.

Specifications

Low insertion loss pre-SAW filter and no cavity filter is required.
Small, efficient and waterproof.

Max output power: 30dBm(1W)
Amplifier connectors: N-KFD to Antenna, N-JFD to Cable
Tee DC Feeder connectors: RP-SMA-KFD to Cable, RP-SMA-JFD to Hotspot
TX Gain: 6 dB
RX Gain: ≈17 dB
EVM: 3%@30dBm
Input and output impedance: 50 Ω

We are selling our HNT amplifer at a reduced price for a limited introduction period!
